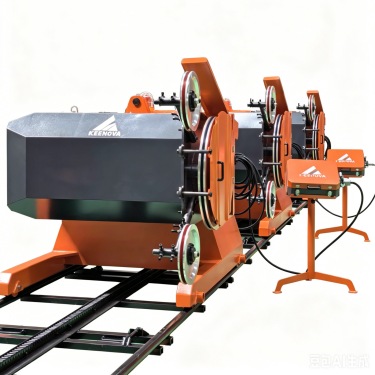

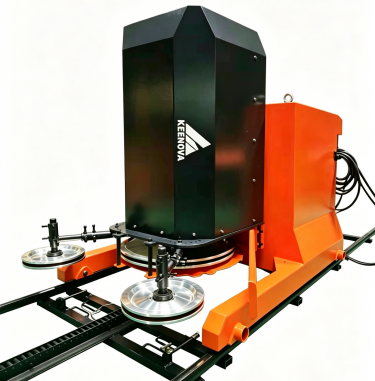

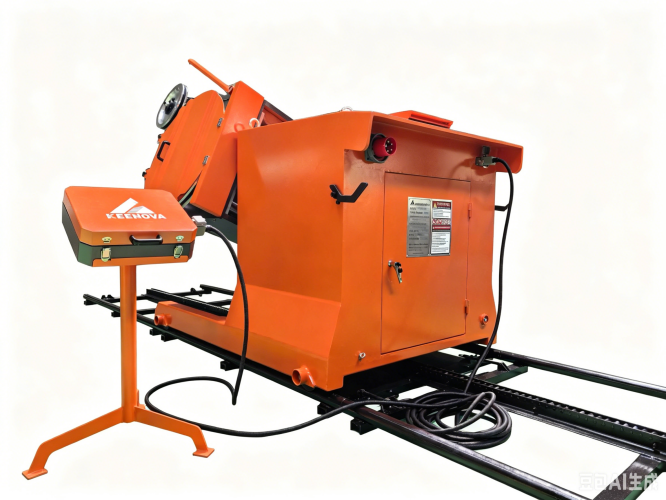

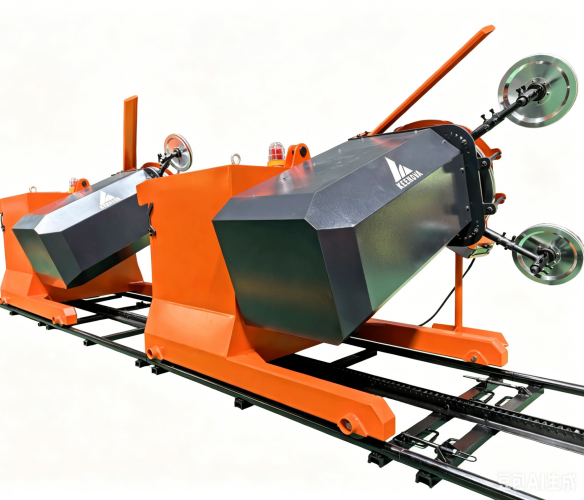

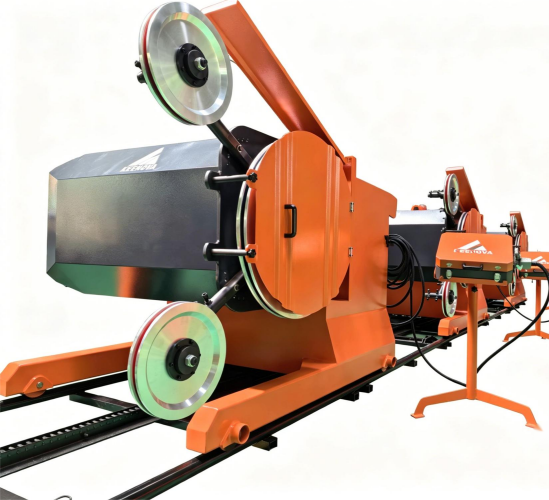

The Keenova 55kW / 75kW wire saw machine is engineered for efficient and reliable quarry cutting of hard stone materials such as granite, marble, and basalt. It delivers an excellent balance of high power, stable performance, and precise cutting control, making it a dependable solution for modern quarry operations.
High-Power Drive System (55kW / 75kW)
Equipped with a robust 55kW or 75kW drive system, available with standard motor or permanent magnet (PM) motor option, the machine provides strong and stable cutting power.
It ensures consistent performance even under heavy-load conditions in hard rock quarry applications.
Advanced Stepless Tension Control System
The automatic stepless tensioning system maintains constant wire tension throughout the entire cutting process.
uImproves cutting precision
uReduces wire vibration and stress
uSignificantly extends diamond wire service life
Heavy-Duty Reinforced Machine Structure
The machine frame is designed for continuous heavy-duty quarry operation.
uHigh metal structural rigidity
u Reduced deformation under load
u Long-term operational stability
Optimized Pulley Alignment Design
Precision-engineered pulley alignment ensures smooth wire movement during cutting.
uReduced friction loss
uImproved cutting efficiency
uEnhanced wire stability and lifespan
Low Vibration Cutting Performance
uThe structural design and drive system work together to minimize vibration during operation.
uImproved cutting accuracy
uHigher stability during long cutting cycles
uExtended machine service life

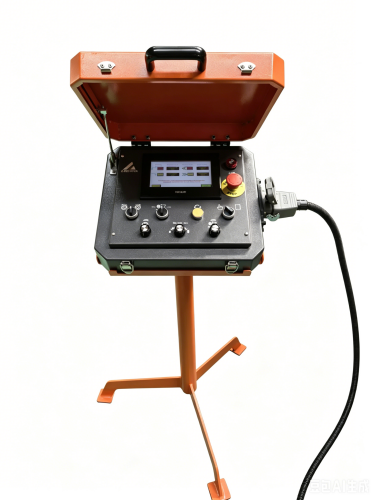

User-Friendly Control System
A simple and efficient control interface allows operators to easily manage cutting parameters.
uEasy operation and training
uSafe and stable performance control
uImproved on-site productivity

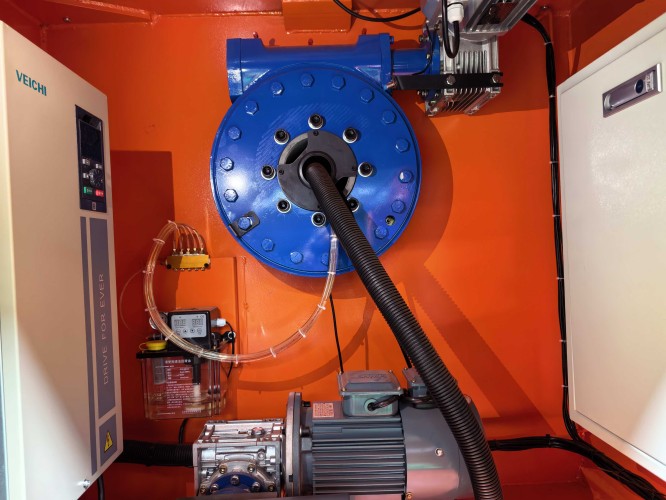

Advanced Control & Drive Technology
The Keenova wire saw machine integrates modern automation technology:
uPLC intelligent control system
uDual vector inverters for stable torque output
uOptional inverter brands: Leading Chinese brands Inovance/Veichi or Japanese Yaskawa
This ensures precise control, smooth operation, and reliable performance under varying load conditions.
Wide Cutting Speed Range
Cutting speed is fully adjustable from 0 to 40 m/s, allowing flexible adaptation to different materials and working conditions.
Flexible Machine Movement
uMotorized lateral movement system

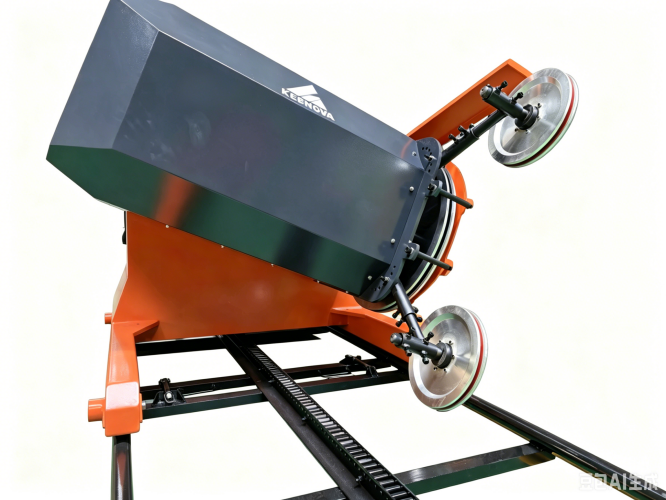

u360-degree rotation and lateral transition of flywheel-holder head
uRemote-controlled positioning capability flexible for cutting in any direction
This enables fast setup, accurate positioning, and efficient execution of parallel cuts in quarry operations.
Fully Motorized Operation
All key machine movements are motor-driven, reducing manual intervention and improving overall efficiency and safety.
Comprehensive Safety Protection System
uMultiple built-in protection functions ensure safe operation:
uWire break detection and automatic shutdown
uOver-voltage and over-current protection
uMotor overheating alarm
uIncorrect operation prevention system
The Keenova 55kW / 75kW wire saw machine is a high-performance solution designed for demanding quarry environments.
With its strong power system, intelligent control technology, and heavy-duty structure, it helps operators achieve:
uHigher cutting efficiency
uLower operational cost
uImproved diamond wire lifetime
uSafer and more stable production
It is an ideal choice for modern quarry operations seeking reliability, productivity, and long-term value.
